• 20 port Layer 2+ Managed PoE Gigabit Switch
    • 4 x Gigabit Ethernet PoE++ Ports (up to 90 Watts per port)
    • 12 x Gigabit Ethernet PoE/PoE+ (802.3af/at), up to 30 Watts per port
    • 4 x Gigabit RJ-45/SFP Combo Ports
  • 1 x RJ-45 Console Port
  • PoE power budget of 400 watts
  • PoE Scheduling & Ping watchdog power cycle
  • 160 Gbps switching capacity
  • Port based and 802.1q tagged VLANs (MAC address, and protocol)
  • Voice and Surveillance VLANS with QoS (OUI Mode) providing improved call and video quality
  • ONVIF (Open Network Video Interface Forum) compliant
  • QoS with 8 queues for traffic prioritisation
  • Enterprise-Level security features
    • 802.1x Port Security, ACL, IP Source Guard and DHCP Snooping
    • Access Control (IPv4, IPv6 and MAC address)
  • IP Conflict Prevention to avoid IP conflicts caused by misconfigured or malicious hosts
  • Support IPv6 with MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver
  • Authentication by local database, multiple RADIUS, and TACACS+ servers
  • IEEE 802.3az (Energy-Efficient Ethernet) Compliant
  • Support SNMP v1/v2c/v3, RMON, and Syslog for network monitoring
  • Port Mirroring & Link Aggregation
  • Compliant with Central Switch Management features of DrayTek Vigor devices for simplified network management Learn more
  • Compliant with VigorConnect free software for local network management Learn more
  • Supports VigorACS 3 Central Management Software for remote management
  • 2 years back to base warranty


2.5GbE L2+ Managed Switch with PoE++

DrayTek VigorSwitch PQ2200xb features 16 x 2.5GbE ports for LAN and 4 x 10G SFP+ for uplink/downlink. It has 4 x PoE++ ports providing up to 90W per port and 12 x PoE+ ports. With a total of 400W output, it is ideal for business applications with IoT devices, such as LED lighting, POS (point of sale) computer, sensors, IP cameras, etc.

When configured with WiFi6 VigorAPs (e.g., VigorAP 1060C), VigorSwitch PQ2200xb can bring full WiFi 6 capability and features to LAN clients. Furthermore, it supports advanced Layer 3 features, DHCP Server, and VLAN Routing, to improve network efficiency and ensure that the LAN network continues to work even if the gateway is offline. Therefore, this switch is well placed to be the core switch in most SME/SMB networks.

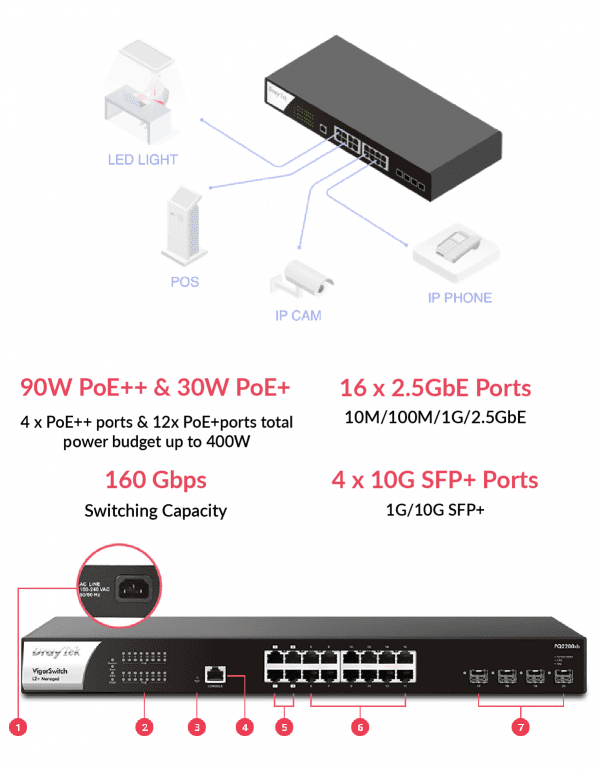

  1. Power Socket
  2. LED Indicator
  3. Reset Button
  4. Console Port
  5. 4 x PoE++ 2.5GbE Ports
  6. 12 x PoE+ 2.5GbE Ports
  7. 4 x SFP+ Ports

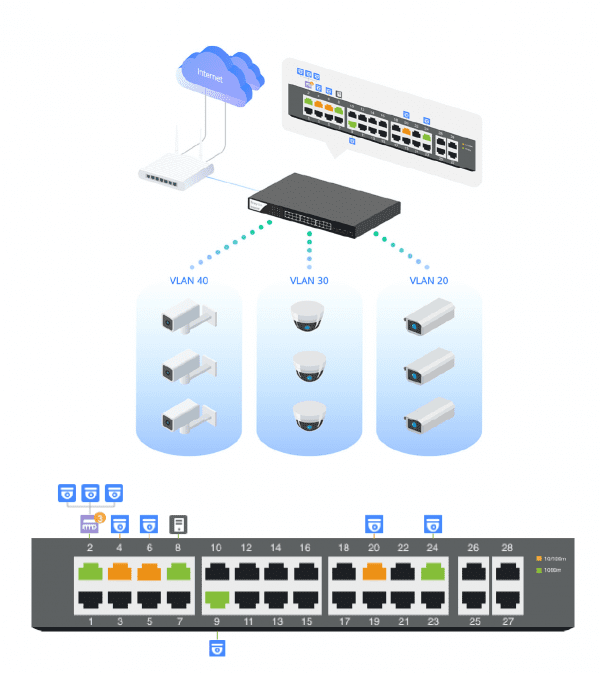

Recognise ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance

Centralised Hierarchical View

The VigorSwitch PQ2200xb automatically detects ONVIF devices and displays the topology of connected IP cameras and NVRs.

Image Viewing

Images filmed by IP cameras can be viewed directly within the VigorSwitch PQ2200xb web UI.

Device Management

Basic configuration/maintenance tasks for ONVIF devices such as remote reboot, factory reset and changing network settings can all be done remotely from the VigorSwitch PQ2200xb web UI.

ONVIF Snapshot Alert

Locating Non-Responding IP Cameras Made Easy

Managing a network of IP cameras across different locations is difficult, as when any of the cameras stop functioning, there is no easy way to detect or revive it. To help with this problem, the VigorSwitch PQ2200xb regularly pings ONVIF IP cameras and takes snapshots from them periodically. If one IP camera stops responding, an email alert is sent with the latest snapshot from the camera.

With PoE VigorSwitch models, the switch can also provide first aid by automatically power cycling the particular port to reboot the camera.

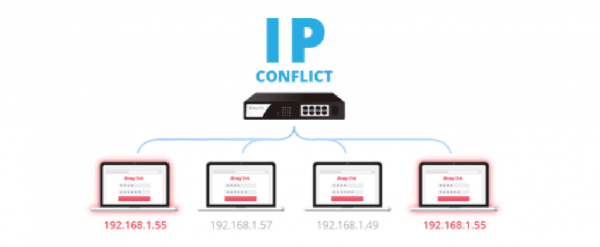

IP Conflict Detection & Prevention

Conflict Detection

The VigorSwitch constantly checks the network environment and notifies the administrator of any IP conflicts.

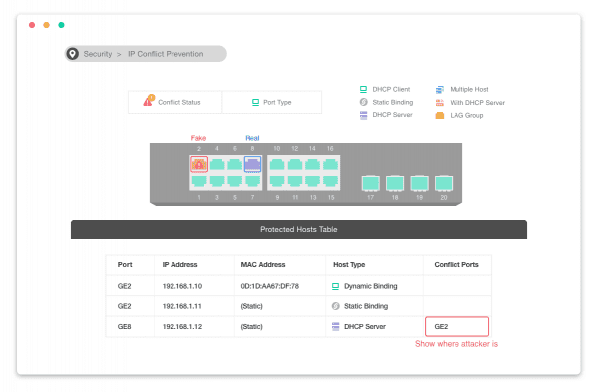

Conflict Prevention

For a more stable network, the VigorSwitch detects misconfigured or malicious IP hosts and blocks them before damages are done.

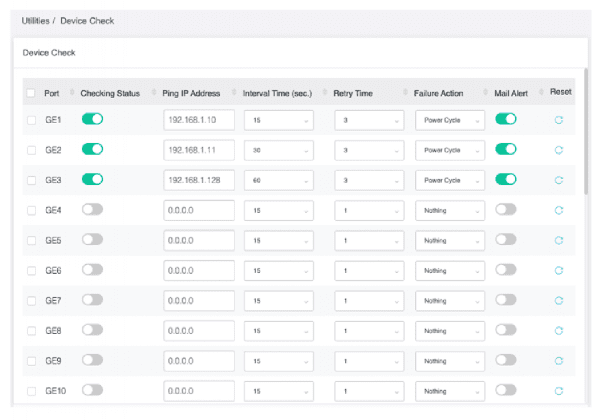

Device Check


Ping Check for LAN Devices

A VigorSwitch can continuously ping the LAN devices, and when the device stops responding to the ping, it will instigate a PoE cycle to the associated port (PoE model only) and/or send an email alert to the administrator.

LAN Management

An all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery

Connect a Vigor Switch or AP to the LAN side of the Vigor Router, and the router will auto-discover the device to allow it to be managed.


Basic settings may be done on the Vigor Router, and then provisioned to the managed Vigor Switches or APs.


The Vigor Router provides a centralized view of managed devices, so you can monitor and check the status of Vigor Switches or APs connected.

System Maintenance

Perform factory resets, save/restore configuration backups, or trigger reboots remotely from the Vigor Router’s interface. There is no need to log in to each device’s management page.

Management Solution


All-in-One Management
Central Switch Management
  • Auto-Discovery
  • Provisioning
  • Monitoring
  • Centralised Hierarchy View
  • Reboot PoE Devices Remotely
  • Quick VLAN Configuration


Software Management
VigorConnect (FREE)
  • Auto-Discovery
  • Auto-Provisioning
  • Monitoring
  • Centralised Hierarchy View
  • Alarm
  • Reboot PoE Devices Remotely
  • Scheduled Maintenance
VigorACS 3
  • Zero Touch Deployment & Provisioning
  • Auto VPN
  • Interface Quality & SLA
  • VoIP Optimization & Monitoring
  • Application Visibility
  • Application-Based SD-WAN Policy
  • Customized Hotspot Page with Multilingual
  • Hotspot Clients Analytics
  • ACS Server Load Balancing / Failover


Key Features


PoE++ (802.3bt)
Deliver up to 90W over one Ethernet cable. Turn on/off the PoE device periodically with PoE Schedule.

QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Ping Device Check
Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.

Auto Surveillance & Voice VLAN
Recognise traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

Recognise ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more

Provides higher performance to WiFi 6 AP and other Ethernet devices.

IPv6 Ready
VigorSwitch PQ2200xb supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo

Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch PQ2200xb to route the inter-VLAN traffic directly and offload the router.

Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.

Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more




Note :

The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.

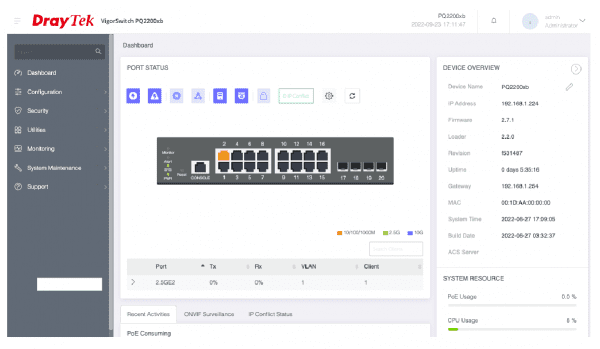

Config Demo
